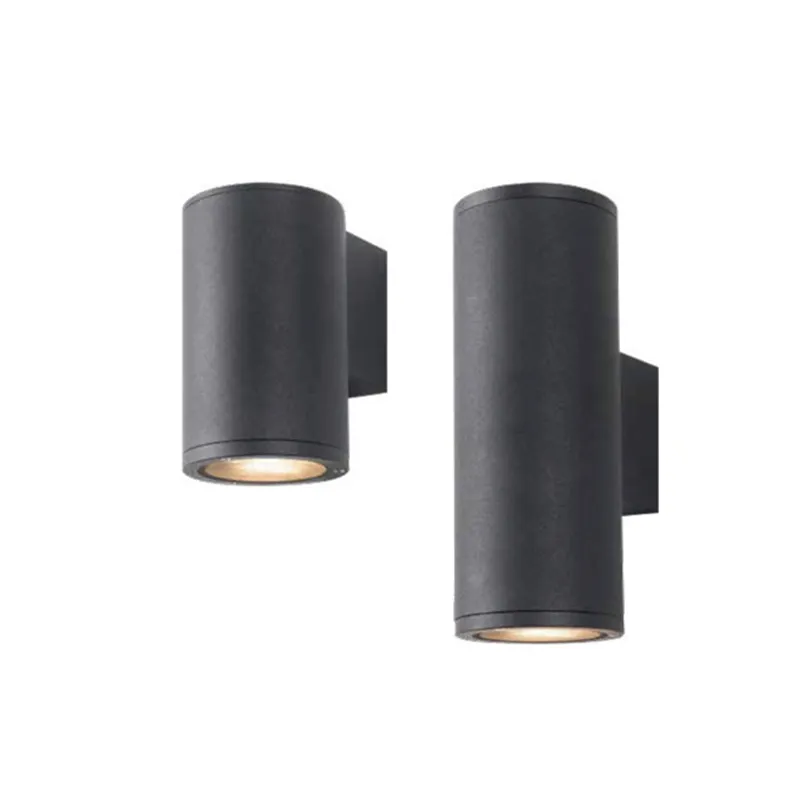

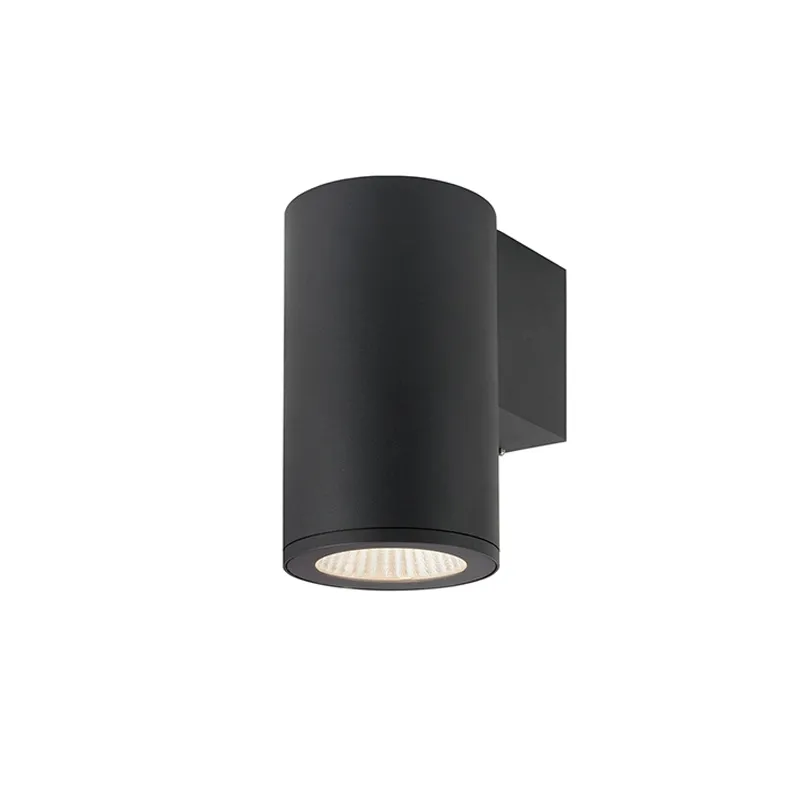

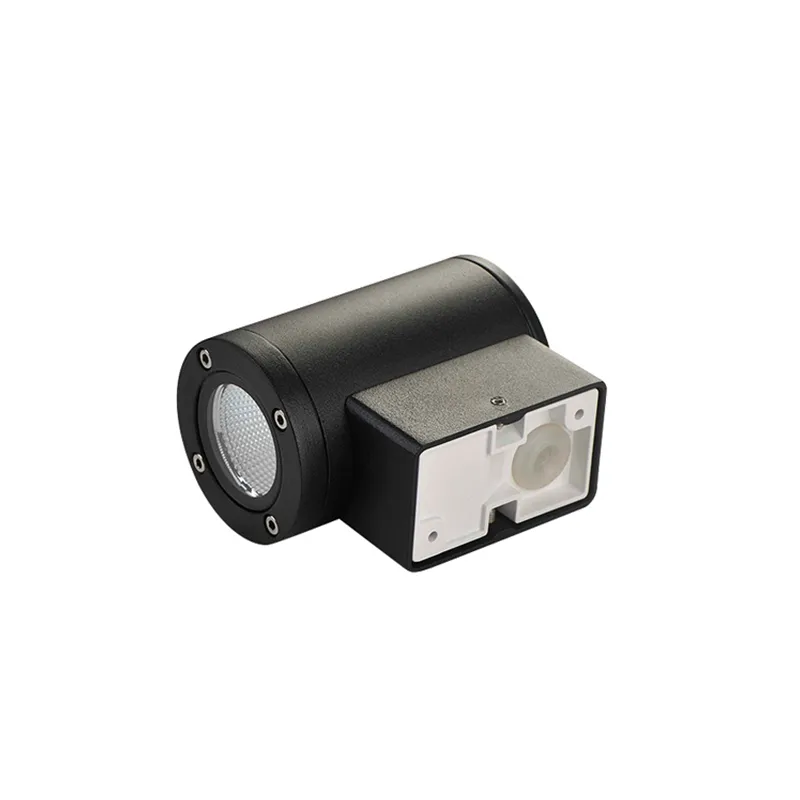

6W Waterproof IP65 Wall Down Light
| CRI | >80 | ||||
| Delivered flux | 480 lm | ||||
| Delivered efficiency | 80 lm/W | ||||
| Input power | 6W | ||||
| Supply voltage | 110~240V AC | ||||
| Light colour/CCT | 2700K-6500K | ||||
| Beam angle | 15°/23°/38°/60° | ||||
5-YEAR WARRANTY
5-YEAR WARRANTY
| CRI | >80 | ||||
| Delivered flux | 480 lm | ||||
| Delivered efficiency | 80 lm/W | ||||
| Input power | 6W | ||||
| Supply voltage | 110~240V AC | ||||
| Light colour/CCT | 2700K-6500K | ||||
| Beam angle | 15°/23°/38°/60° | ||||
PARAMETER
| IP rating | 65 | ||||
| Ik rating | 8 | ||||
| Source type | Hight power LED | ||||
| Source life time | >50,000h at 25°C ambient temperature | ||||
| CRI | >80 | ||||
| Step McAdam | 3 | ||||
| Source flux | 720 lm | ||||
| Source efficiency | 120 lm/W | ||||
| Delivered flux | 480 lm | ||||
| Delivered efficiency | 80 lm/W | ||||
| Input power | 6W | ||||
| Supply voltage | 110~240V AC | ||||
| Insulation Class | Insulation class III | ||||
| Power supply | Built in constant current driver | ||||
| Material | Aluminum | ||||
| Light colour/CCT | 2700K-6500K | ||||
| Beam angle | 15°/23°/38°/60° | ||||
| Mounting | Surface mount | ||||
| Reflector color | Black/White/Silver | ||||
| Finishing | White/black | ||||
TEMPERATURE LIMITS
Working temperature: -30C° to +50C°
Storage temperature: -50C° to +80C°
LIGHT CONTROL
ON/OFF,DALI dimming
CONSTRUCTION
Corrosion resistant die-cast aluminum body. Polyester powder coating, with a pluri-processed against corrosion
WARRANTY
• 5-year limited system warranty standard
• Warranty does not cover product failure due to an overvoltage event (power surge)
• For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
SPECIFICATIONS
TECHNICAL DRAWING
PHOTOMETRICS
