50W CCT 3000-6000K IP66 Street Lights
| CRI | >80 | ||||
| Delivered flux | 6500 lm | ||||
| Delivered efficiency | 130 lm/W | ||||
| Input power | 50W | ||||
| Supply voltage | 110~240V AC | ||||
| Light colour/CCT | 3000K/4000K/6000K | ||||
| Beam angle | 90°/120°/70°×144° | ||||
5-YEAR WARRANTY
5-YEAR WARRANTY
| CRI | >80 | ||||
| Delivered flux | 6500 lm | ||||
| Delivered efficiency | 130 lm/W | ||||
| Input power | 50W | ||||
| Supply voltage | 110~240V AC | ||||
| Light colour/CCT | 3000K/4000K/6000K | ||||
| Beam angle | 90°/120°/70°×144° | ||||
PARAMETER
| IP rating | 66 | ||||
| Ik rating | 8 | ||||
| Source type | Hight power LED | ||||
| Source life time | >50,000h at 25°C ambient temperature | ||||
| CRI | >80 | ||||
| Step McAdam | 3 | ||||
| Source flux | 7000 lm | ||||
| Source efficiency | 140 lm/W | ||||
| Delivered flux | 6500 lm | ||||
| Delivered efficiency | 130 lm/W | ||||
| Input power | 50W | ||||
| Supply voltage | 110~240V AC | ||||
| Insulation Class | insulation class I | ||||
| Power supply | Built in constant current driver | ||||
| Material | aluminum | ||||
| Light colour/CCT | 3000K/4000K/6000K | ||||
| Beam angle | 90°/120°/70°×144° | ||||
| Mounting | Post top | ||||
| Reflector color | Grey | ||||
| Finishing | Grey | ||||
TEMPERATURE LIMITS
Working temperature: -30C° to +50C°
Storage temperature: -50C° to +80C°
LIGHT CONTROL
ON/off
CONSTRUCTION
The luminaire integrates a die-cast aluminum housing for durability and heat dissipation, modular design with adjustable brackets for easy installation, and tempered glass with IP66 protection to withstand harsh outdoor conditions.
WARRANTY
• 5-year limited system warranty standard
• Warranty does not cover product failure due to an overvoltage event (power surge)
• For installations where power surge may be possible, NICOR recommends installing additional
surge protection at the electrical distribution panel
SPECIFICATIONS
TECHNICAL DRAWING
PHOTOMETRICS
Description

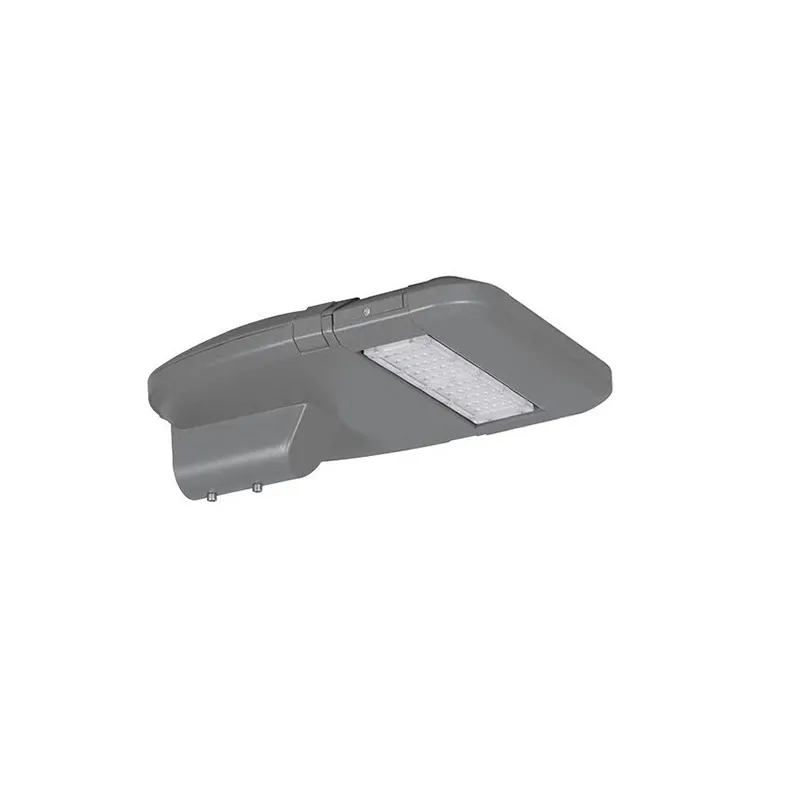

The OPTILUX 50W LED Street Light delivers efficient and reliable lighting for roads, parks, and outdoor areas. Built with corrosion-resistant aluminum and IP66-rated waterproof protection, it is available in various fixed color temperatures from 3000K to 6000K to meet project needs.
· Q1: What is the mounting method?
A1: Suitable for horizontal arm or pole mount.
· Q2: Is it resistant to rain and dust?
A2: Yes, with IP66 protection.
· Q3: Does it support smart control?
A3: Optional versions can integrate with photocell or Zigbee control.
