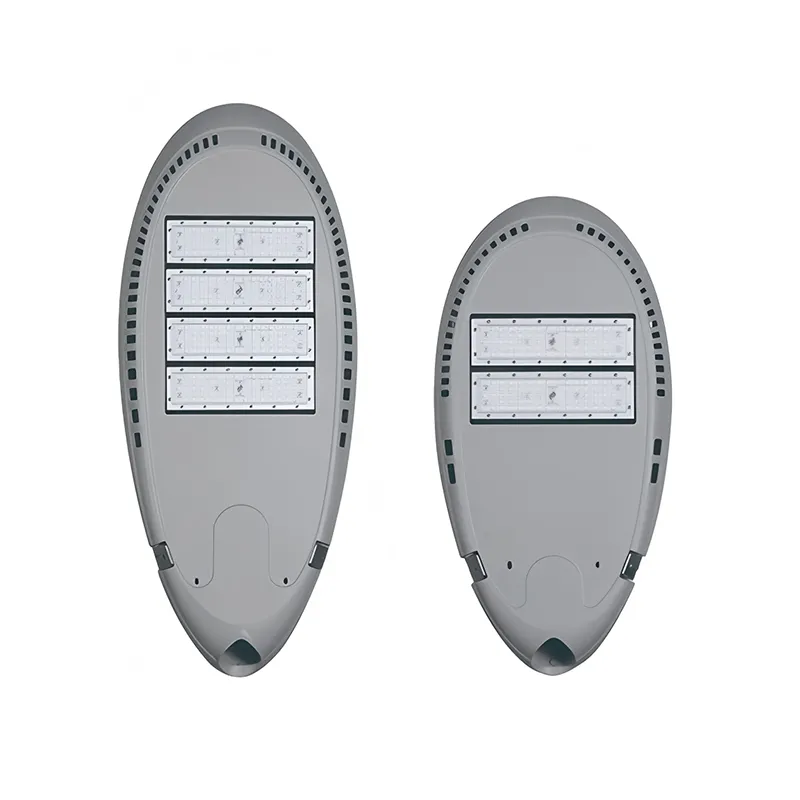

100W CCT 3000-6000K IP66 Street Lights
| CRI | >80 | ||||
| Delivered flux | 13000 lm | ||||
| Delivered efficiency | 130 lm/W | ||||
| Input power | 100W | ||||
| Supply voltage | 110~240V AC | ||||
| Light colour/CCT | 3000K/4000K/6000K | ||||
| Beam angle | 90°/120°/70°×144° | ||||
5-YEAR WARRANTY
5-YEAR WARRANTY
| CRI | >80 | ||||
| Delivered flux | 13000 lm | ||||
| Delivered efficiency | 130 lm/W | ||||
| Input power | 100W | ||||
| Supply voltage | 110~240V AC | ||||
| Light colour/CCT | 3000K/4000K/6000K | ||||
| Beam angle | 90°/120°/70°×144° | ||||
PARAMETER
| IP rating | 66 | ||||
| Ik rating | 8 | ||||
| Source type | Hight power LED | ||||
| Source life time | >50,000h at 25°C ambient temperature | ||||
| CRI | >80 | ||||
| Step McAdam | 3 | ||||
| Source flux | 14000 lm | ||||
| Source efficiency | 140 lm/W | ||||
| Delivered flux | 13000 lm | ||||
| Delivered efficiency | 130 lm/W | ||||
| Input power | 100W | ||||
| Supply voltage | 110~240V AC | ||||
| Insulation Class | insulation class I | ||||
| Power supply | Built in constant current driver | ||||
| Material | aluminum | ||||
| Light colour/CCT | 3000K/4000K/6000K | ||||
| Beam angle | 90°/120°/70°×144° | ||||
| Mounting | Post top | ||||
| Reflector color | Grey | ||||
| Finishing | Grey | ||||
TEMPERATURE LIMITS
Working temperature: -30C° to +50C°
Storage temperature: -50C° to +80C°
LIGHT CONTROL
ON/off
CONSTRUCTION
The luminaire integrates a die-cast aluminum housing for durability and heat dissipation, modular design with adjustable brackets for easy installation, and tempered glass with IP66 protection to withstand harsh outdoor conditions.
WARRANTY
• 5-year limited system warranty standard
• Warranty does not cover product failure due to an overvoltage event (power surge)
• For installations where power surge may be possible, NICOR recommends installing additional
surge protection at the electrical distribution panel
SPECIFICATIONS
TECHNICAL DRAWING
PHOTOMETRICS
