5-YEAR WARRANTY
| Solar panels | 5V/50W solar panel | ||||
| Battery capacity | 3.2V/50Ah high-temperature resistant LiFePO4 battery | ||||
| Working hours | Battery fully charged for over 10 hours | ||||
| Working mode | Always On | ||||
| Solar panel type | Polycrystalline silicon | ||||
| Beam angle | 70°x140° | ||||
PARAMETER
| IP rating | 65 |
| Ik rating | 8 |
| Source type | Hight power LED |
| Source life time | >50,000h at 25°C ambient temperature |
| CRI | >70 |
| Step McAdam | 3 |
| Solar panels | 5V/50W solar panel |
| Solar panel type | Polycrystalline silicon |
| Battery capacity | 3.2V/50Ah high-temperature resistant LiFePO4 battery |
| Working hours | Battery fully charged for over 10 hours |
| Working mode | Always On |
| Material | Aluminium+PC |
| CCT | 3000K/4000K/6000K |
| Beam angle | 70°x140° |
| Mounting | Post top |
| Reflector color | Grey |
| Finishing | Grey |
TEMPERATURE LIMITS
Working temperature: -30C° to +50C°
Storage temperature: -50C° to +80C°
LIGHT CONTROL
Light control/Radar sensor
CONSTRUCTION
The solar street light combines a die-cast aluminum alloy housing with integrated solar panels for corrosion resistance and energy efficiency, along with modular battery compartments, adjustable brackets, and IP65 waterproof design to ensure durability and simple installation in harsh conditions.
WARRANTY
• 3-year limited system warranty standard
• Warranty does not cover product failure due to an overvoltage event (power surge)
SPECIFICATIONS

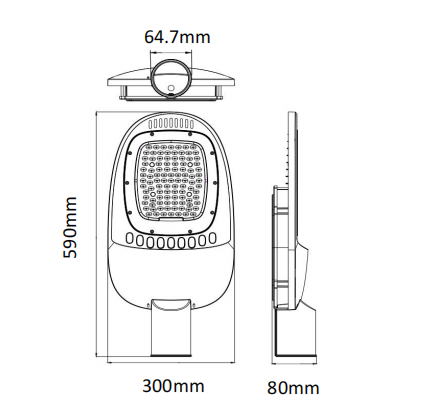

TECHNICAL DRAWING
PHOTOMETRICS
