24W CCT 3000-6000K Round Recessed Downlight

CRI>90
Delivered flux1920 lm
Delivered efficiency80 lm/W
Input power24W
Supply voltage220~240V AC
Light colour/CCT3000K/4000K/6000K
Beam angle120°

PARAMETER

IP rating54
Ik rating8
Source typeHight power LED
Source life time>50,000h at 25°C ambient temperature
CRI>90
Step McAdam3
Source flux2880 lm
Source efficiency120 lm/W
Delivered flux1920 lm
Delivered efficiency80 lm/W
Input power24W
Supply voltage220~240V AC
Insulation Classinsulation class III
Power supplyLifud driver constant current
Materialaluminum
Light colour/CCT3000K/4000K/6000K
Beam angle120°
MountingSurface Mounted
Reflector colorBlack/White/Silver
Finishingwhite/black

TEMPERATURE LIMITS

Working temperature: -30C° to +50C°

Storage temperature: -50C° to +80C°

LIGHT CONTROL

ON/off, optional DALI dimming

CONSTRUCTION

• Cast aluminum trim routes heat away from electrical components

• Adjustable, spring loaded retention tabs ensure secure fixture retention

• Certified for direct contact with insulation

WARRANTY

• 5-year limited system warranty standard

• Warranty does not cover product failure due to an overvoltage event (power surge)

• For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel

SPECIFICATIONS

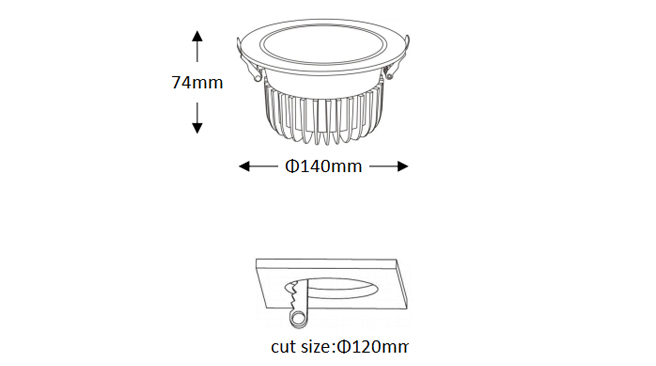

TECHNICAL DRAWING

24W CCT 3000-6000K Round Recessed Downlight

PHOTOMETRICS

Description


The OPTILUX 24W round recessed downlight is designed to deliver smooth and efficient lighting in modern indoor ceilings. It’s ideal for offices, hotels, retail shops, and meeting rooms. Offered in a range of fixed color temperatures (3000K–6000K) tailored to customer preference.


Applications


This CCT adjustable LED recessed downlight is suitable for:

  • Office ceilings and conference rooms

  • Residential living rooms, kitchens, and hallways

  • Hotels and hospitality lighting

  • Commercial retail spaces

  • Healthcare and educational institutions

  • Showrooms and art galleries

With its minimalist design and high-performance output, it ensures modern lighting aesthetics and energy efficiency.


Why Choose Optilux Recessed Downlights?


  • Over a decade of LED lighting manufacturing expertise

  • Certified by CE, RoHS, and ISO quality standards

  • Versatile design with adjustable color temperature

  • OEM/ODM solutions for customized lighting projects

  • Competitive factory pricing with stable bulk supply


FAQ

Q1: What size cutout does this downlight need?

A1: Please refer to the datasheet for exact cutout dimensions.


Q2: Can the brightness be adjusted?

A2: Yes, dimmable versions are available upon request.


Q3: Does it support TRIAC or 0-10V dimming?

A3: Both options are available depending on the selected driver.


Enhance your indoor lighting with advanced recessed LED downlights. Get in touch with Optilux for product samples, wholesale pricing, or tailored lighting design support. We're your trusted partner for long-lasting LED solutions.
