Qian Deng Lake Landscape Lighting Renovation Project

Project Background

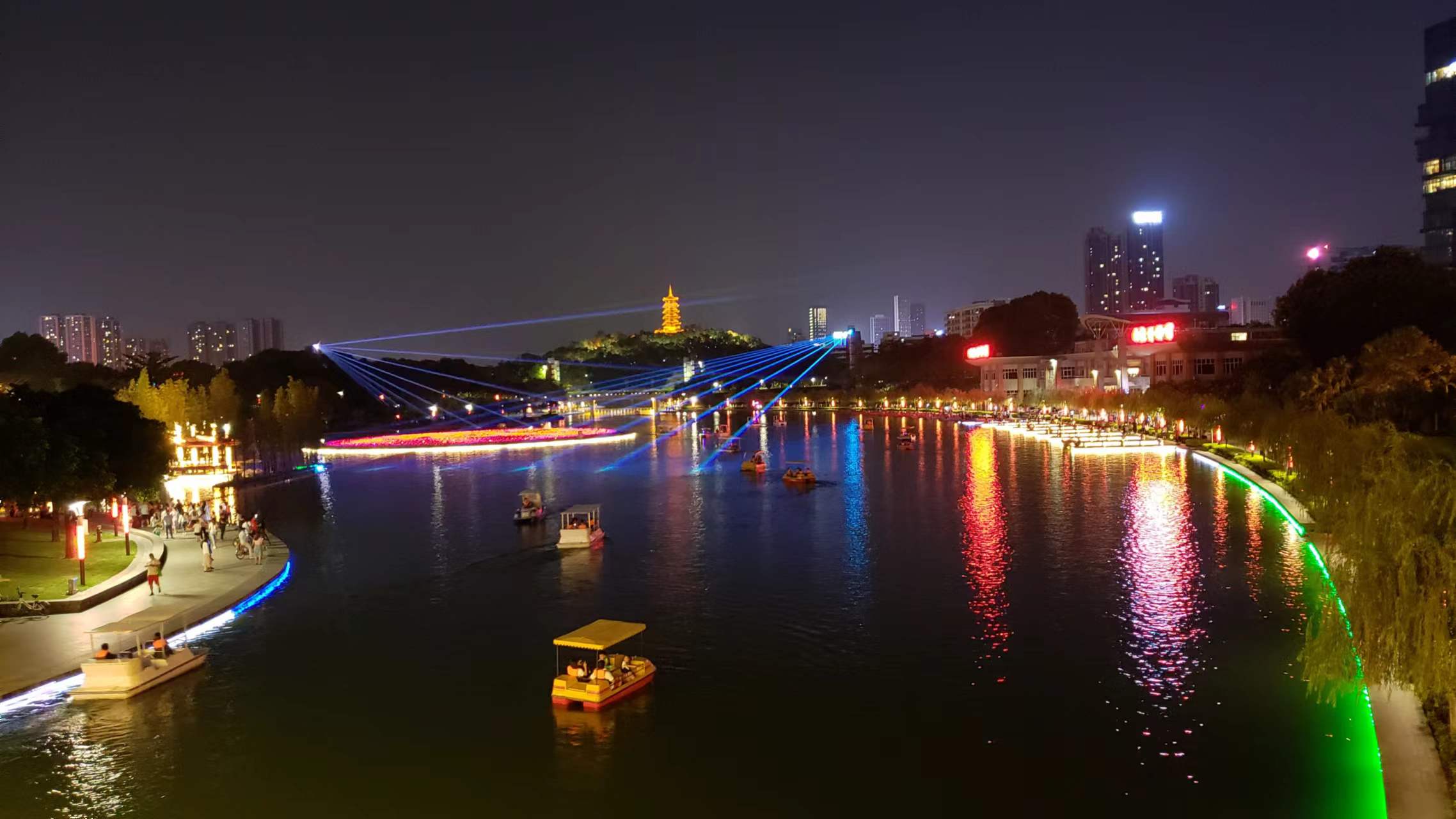

Qian Deng Lake, as a landmark of Nanhai District, plays a key role in the region's economic, cultural, and technological development. It also serves as an important leisure and tourist destination for residents of Foshan and Guangzhou. Since the lake's opening 17 years ago, some of the landscape lighting has aged, negatively impacting its overall image. This lighting renovation plan aims to enhance the visual effects of the landscape while maintaining the original warm-toned design. The goal is to create a more dynamic, energy-efficient, and eco-friendly city nightscape.

Plan Overview
The renovation includes lighting improvements for the lighthouse, lamp posts, bridges, courtyard lights, and key scenic spots. The main points are as follows:

I. Lighthouse and Lamp Post Renovation

Lighthouse

Replace with high-power LED T8 daylight tubes for improved light efficiency and reduced energy consumption.
Install RGB tubes to enable color transitions during holidays, enhancing festive ambiance.
Use 4G communication modules for synchronized control across multiple lighthouses to ensure consistent color changes.

Lamp Posts

Adopt dual-circuit LED light tubes to prevent lighting disruption in case of failure.
Replace with high-power LED lamps to extend their service life.
Add RGB color tubes to enable varied lighting effects during holidays.

II. Bridge Lighting Enhancement

Jinhai Bridge

Replace daylight tubes with 2700K LED wall washers to reduce dark spots on the bridge surface and enhance light efficiency.
Add spotlights to the bridge piers to highlight their outlines and create a three-dimensional effect.
Install wall-mounted lights under the bridge to increase brightness.

Guandong Bridge

Replace with RGBW LED wall washers to provide four-color gradient effects.
Replace metal railing high-pressure energy-saving lamps with 12V low-voltage LED lights for improved safety and aesthetics.

III. Courtyard Light and Reflector Lamp Upgrades

Courtyard Lights

Upgrade to 40W LED spotlights with adjustable color temperatures.
Use dual-color temperature LED tubes for adjustable lighting.
Enhance the reflectivity of reflectors for more even lighting.

Special Lighting Effects

Use RGBW tubes for the courtyard lights around the lake, switching to different modes for each holiday to match the "Spring, Summer, Fall, Winter" theme of Qian Deng Lake Phase II.

IV. Other Scenic and Facility Lighting Enhancements

Pier Lighting

Install 4000K LED strip lights to highlight the pier’s outline, and small buried lights on each column for added visual appeal.

Water Courtyard

Replace with 2000K LED floodlights to reduce glare and highlight the courtyard’s structure.
Install LED spotlights on the four corner columns to enhance the three-dimensional effect.

Fog Valley and Poem Square

Install LED floodlights and wall-mounted lights to improve the nighttime lighting of these spots.
Install LED lights under the small bridge in the Fog Valley to increase its brightness.

V. Intelligent Management System

In addition to the physical upgrades, a remote smart lighting management system will be implemented throughout the park for the first time. This system allows for centralized management of all lights, with features such as:

Remote Dimming: Adjusting light brightness according to different times of day or specific needs to ensure optimal lighting effects.
Scheduled On/Off Times: Setting the times for lights to turn on and off, optimizing energy consumption and reducing unnecessary lighting.
Weekday and Holiday Mode Switching: Automatically switching between different lighting effects and brightness settings for holidays and regular weekdays, enhancing festive ambiance and improving the visitor experience.

Item No.	Type	Image	Description	Qty.	Unit

1	L01		Customized Post Top Light 40W,4000K,Ra80+,Beam Angle -120°, High power LEDs, AC220V(Built-in driver),Material:Aluminum+PC ,Control:0~10V, Size :800*600mm IP65	520	Nos
2	L02		Customized Pillar Light 40W,RGBW,Ra80+,Beam Angle -diffuse, High power LEDs, AC220V(Built-in driver),Material:iron+PC ,Control:DMX512, Size :1600mm IP65	520	Nos
3	L03		Linear Wall Washer 1.5W24,RGBW,Ra80+Beam Angle: 60°,High power LEDs,DC24V,Material:Aluminium, Control:DMX512, Size :3535*1000mm IP66	2417	Nos
4	L04		Linear Wall Washer 24W,3000K,Ra80+Beam Angle: 60°,High power LEDs,DC24V,Material:Aluminium, Control:DMX512, Size :35351000mm IP66	1725	Nos
5	L05		Step Light 1.5W,4000K,Ra80+,Beam Angle-55°, High power LEDs,DC12V,Material:stainless steel,Control:PWM,Size :Φ35*H50mm IP68	305	Nos
6	L06		Floodlight 200W,3000K,Ra80+,Beam Angle -60°, High power LEDs,AC220V(with built-in driver),Material:Aluminium,Control:On /Off, Size:41330953mm IP66	348	Nos
7	L07		Spike spotlight 20W,3000K,Ra80+,Beam Angle -50°, High power LEDs,AC220V(with built-in driver),Material:Aluminium,Control:On /Off, Size::Φ80*110mm IP65	160	Nos
8	L08		Spotlight 5W,2000K,Ra80+,Beam Angle -15°, High power LEDs,DC24V(with built-in driver),Material:Aluminium ,Control:on/off,Size :Φ60*H80mm IP65	2325	Nos
9	L09		Adjustable Underground lamp 18W,3000K,Ra80+,Beam Angle -30°, High power LEDs,AC220V(with built-in driver),Material:Aluminium+stainless steel ,Control:on/off Size : Φ200*153mm IP67	124	Nos
10	L10		Circular spotlight 48W,3000K,Ra80+,Beam Angle -90°, High power LEDs, AC220V,Material:Aluminium,Control:on/off Size :Φ180*Φ160mm IP65	278	Nos
11	L11		Waterproof linear light 12W,3000K,Ra80+,Beam Angle -140°, High power LEDs, DC24V,Material:Aluminium+Acrylic,Control:ON/OFF, Size :23431000mm IP65	1359	Nos
