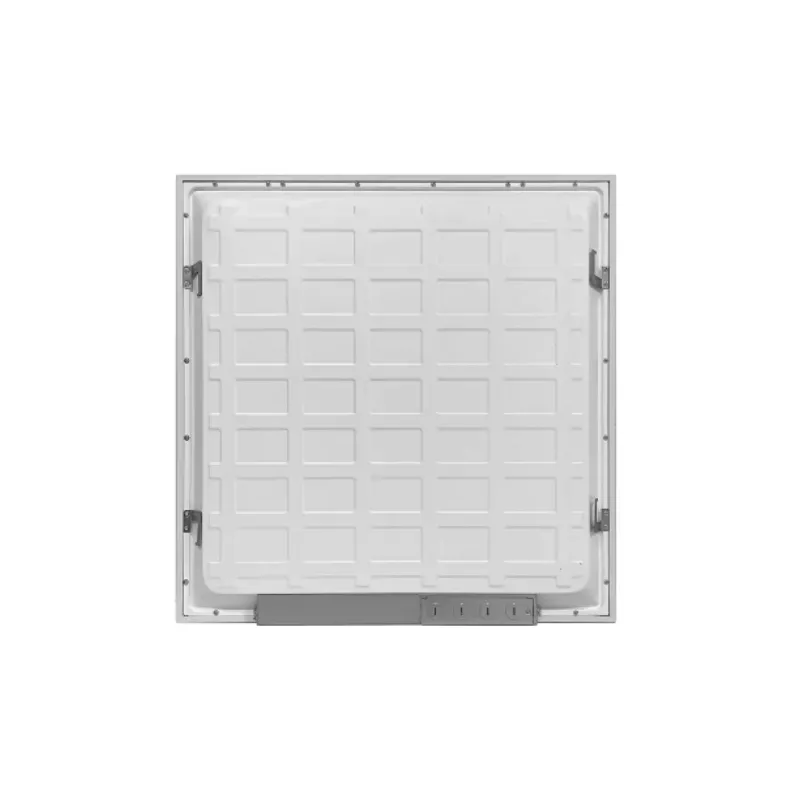

25W CCT 6000K Panel Light
| CRI | >80 | ||||
| Delivered flux | 2500 lm | ||||
| Delivered efficiency | 100 lm/W | ||||
| Input power | 25 W | ||||
| Supply voltage | AC 220V | ||||
| Light colour/CCT | 6000K | ||||
| Beam angle | 120° | ||||
5-YEAR WARRANTY
5-YEAR WARRANTY
| CRI | >80 | ||||
| Delivered flux | 2500 lm | ||||
| Delivered efficiency | 100 lm/W | ||||
| Input power | 25 W | ||||
| Supply voltage | AC 220V | ||||
| Light colour/CCT | 6000K | ||||
| Beam angle | 120° | ||||
PARAMETER
| IP rating | 54 | ||||
| Ik rating | 8 | ||||
| Source type | Hight power LED | ||||
| Source life time | >50,000h at 25°C ambient temperature | ||||
| CRI | >80 | ||||
| Step McAdam | 3 | ||||
| Source flux | 3000 lm | ||||
| Source efficiency | 120 lm/W | ||||
| Delivered flux | 2500 lm | ||||
| Delivered efficiency | 100 lm/W | ||||
| Input power | 25 W | ||||
| Supply voltage | AC 220V | ||||
| Insulation Class | insulation class I | ||||
| Power supply | Built in constant current driver | ||||
| Material | aluminum+PC | ||||
| Light colour/CCT | 6000K | ||||
| Beam angle | 120° | ||||
| Mounting | ceiling-recessed | ||||
| Reflector color | / | ||||
| Finishing | White | ||||
TEMPERATURE LIMITS
Working temperature: -30C° to +50C°
Storage temperature: -50C° to +80C°
LIGHT CONTROL
ON/off
CONSTRUCTION
Aluminum frame, PS diffusion plate, iron bottom surface with high-temperature baked paint,Aluminum PCB+LED ChipS+PMMA LENS
WARRANTY
• 5-year limited system warranty standard
• Warranty does not cover product failure due to an overvoltage event (power surge)
• For installations where power surge may be possible, NICOR recommends installing additional
surge protection at the electrical distribution panel
SPECIFICATIONS
TECHNICAL DRAWING
PHOTOMETRICS
