18W LED Magnetic Track Lights

CRI		>90
Delivered flux		1674 lm
Delivered efficiency		93 lm/W
Input power		18W
Supply voltage		DC48V
Light colour/CCT		3000K/4000K/6000K
Beam angle		24°

Inquire Now

OPTIMT20SL18W48VB

PARAMETER

IP rating		54
Ik rating		8
Source type		Hight power LED
Source life time		>50,000h at 25°C ambient temperature
CRI		>90
Step McAdam		3
Source flux		2160 lm
Source efficiency		120 lm/W
Delivered flux		1674 lm
Delivered efficiency		93 lm/W
Input power		18W
Supply voltage		DC48V
Insulation Class		Insulation class III
Power supply		Built in constant current driver
Material		Aluminum
Light colour/CCT		3000K/4000K/6000K
Beam angle		24°
Mounting		Track installation
Reflector color		Black
Finishing		Black/White

TEMPERATURE LIMITS

Working temperature: -30C° to +50C°

Storage temperature: -50C° to +80C°

LIGHT CONTROL

ON/off, optional DALI dimming

CONSTRUCTION

Die cast aluminum shell, matte painted surface, track head with strong magnet, suitable for standard 26 tracks and accessories

WARRANTY

• 5-year limited system warranty standard

• Warranty does not cover product failure due to an overvoltage event (power surge)

• For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel

SPECIFICATIONS

TECHNICAL DRAWING

PHOTOMETRICS

Description

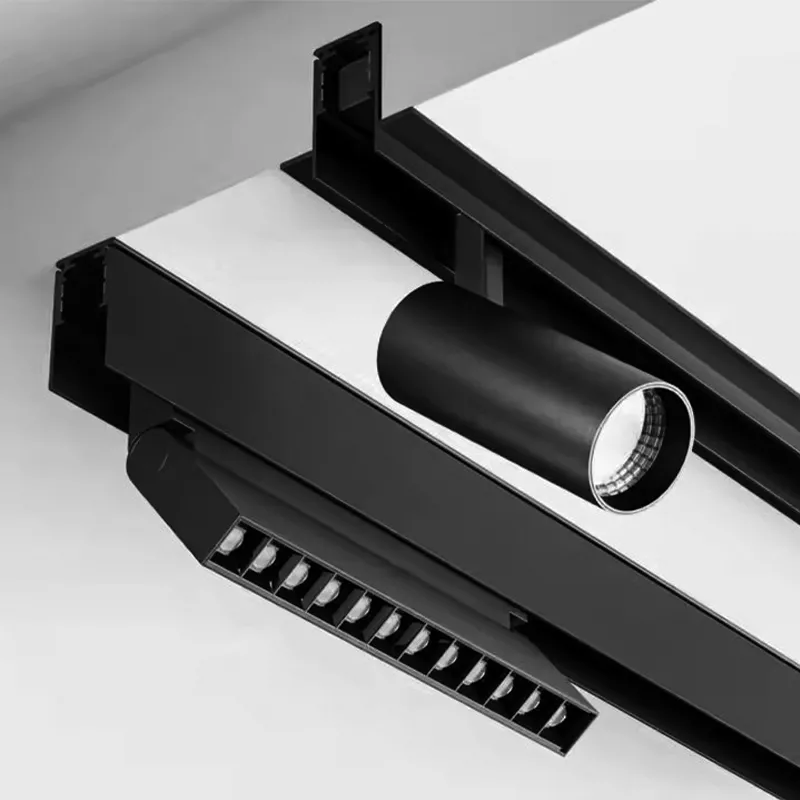

This 18W magnetic LED track light offers flexible accent lighting using low-voltage magnetic systems. Perfect for modern retail, gallery, and architectural lighting setups. Fixed color temperature options from 3000K to 6000K are available upon request.

FAQ

· Q1: What track system is required?
A1: Compatible with 48V magnetic track rails.

· Q2: Can it be repositioned easily?
A2: Yes, magnetic snap-in design allows tool-free adjustment.

· Q3: Is dimming supported?
A3: Yes, depending on track driver configuration.
