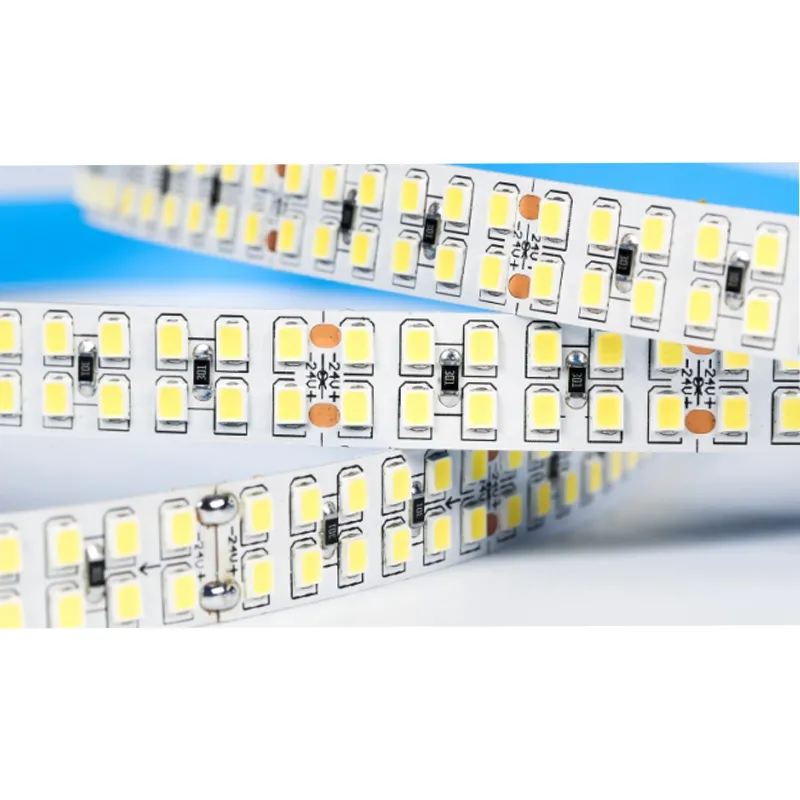

29W CCT 2700-6000K Strip light
| CRI | >90 | ||||
| Delivered flux | 2900 lm | ||||
| Delivered efficiency | 100 lm/W | ||||
| Input power | 29 W | ||||
| Supply voltage | 24V DC | ||||
| Light colour/CCT | 2700K/3000K/4000K/6000K | ||||
| Beam angle | 120° | ||||
5-YEAR WARRANTY
5-YEAR WARRANTY
| CRI | >90 | ||||
| Delivered flux | 2900 lm | ||||
| Delivered efficiency | 100 lm/W | ||||
| Input power | 29 W | ||||
| Supply voltage | 24V DC | ||||
| Light colour/CCT | 2700K/3000K/4000K/6000K | ||||
| Beam angle | 120° | ||||
PARAMETER
| IP rating | 20 | ||||
| Ik rating | 0 | ||||
| Source type | Hight power LED | ||||
| Source life time | >50,000h at 25°C ambient temperature | ||||
| CRI | >90 | ||||
| Step McAdam | 3 | ||||
| Source flux | 3480 lm | ||||
| Source efficiency | 120 lm/W | ||||
| Delivered flux | 2900 lm | ||||
| Delivered efficiency | 100 lm/W | ||||
| Input power | 29 W | ||||
| Supply voltage | 24V DC | ||||
| Insulation Class | insulation class III | ||||
| Power supply | - | ||||
| Material | Flexible Printed Circuit | ||||
| Light colour/CCT | 2700K/3000K/4000K/6000K | ||||
| Beam angle | 120° | ||||
| Mounting | surface mount | ||||
| LED Qty | 360 | ||||
TEMPERATURE LIMITS
Working temperature: -30C° to +50C°
Storage temperature: -50C° to +80C°
LIGHT CONTROL
ON/off
CONSTRUCTION
Flexible Printed Circuit,Double sided adhesive tape on the back of the light strip
WARRANTY
• 5-year limited system warranty standard
• Warranty does not cover product failure due to an overvoltage event (power surge)
• For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
SPECIFICATIONS

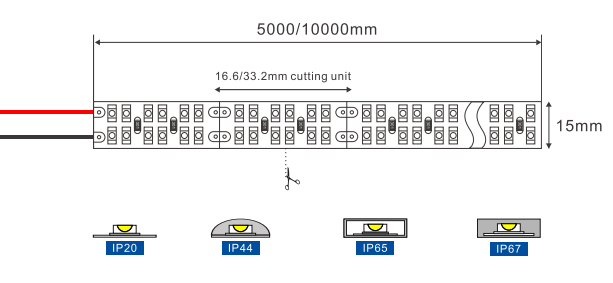

TECHNICAL DRAWING
PHOTOMETRICS
This 29W LED strip light offers high brightness and consistent color rendering, making it ideal for both task and ambient lighting. Its slim and sleek profile allows seamless integration into coves, under cabinets, display shelving, or commercial fixtures. Designed for versatility, The LED Strip Light is suitable for offices, homes, retail spaces, hotels, and hospitality environments.
The 29W LED Strip Light is available in a range of fixed color temperatures from 2700K to 6000K, allowing you to create warm, neutral, or cool lighting atmospheres according to your requirements. Built with high-quality LED chips and a durable housing, it ensures long-lasting performance with low energy consumption.
Additional features include easy installation, low maintenance, and excellent heat dissipation, providing a reliable and efficient lighting solution. Perfect for accent lighting, general illumination, or highlighting architectural features, this 29W LED strip light combines functionality, style, and energy efficiency for modern lighting projects.
Power: 29W
High brightness with consistent color rendering
Fixed color temperatures: 2700K / 3000K / 4000K / 5000K / 6000K
Slim, low-profile design for versatile installation
Energy-efficient and long-lasting LED technology
LED strip light suitable for offices, homes, retail, hotels, and display areas
Easy installation and low maintenance
Enhance your space with Fangtian LED lighting solutions – reliable, energy-efficient, and stylish. Order your 29W LED Strip Light today and transform your lighting experience!
· Q1: What is the CCT range of this strip?
A1: It is available in 2700K to 6000K options at time of ordering.
· Q2: Is it suitable for indirect lighting?
A2: Yes, it's ideal for cove and ambient applications.
· Q3: Can it be used in aluminum profiles?
A3: Yes, it's compatible with standard LED profiles.
