150W IP65 Explosion Proof LED Flood Lights
| CRI | >80 | ||||
| Delivered flux | 21000 lm | ||||
| Delivered efficiency | 140 lm/W | ||||
| Input power | 150W | ||||
| Supply voltage | 110~240V AC | ||||
| Light colour/CCT | 6000-6500K | ||||
| Beam angle | 120° | ||||
5-YEAR WARRANTY
5-YEAR WARRANTY
| CRI | >80 | ||||
| Delivered flux | 21000 lm | ||||
| Delivered efficiency | 140 lm/W | ||||
| Input power | 150W | ||||
| Supply voltage | 110~240V AC | ||||
| Light colour/CCT | 6000-6500K | ||||
| Beam angle | 120° | ||||
PARAMETER
| IP rating | 65 | ||||
| Ik rating | 8 | ||||
| Source type | Hight power LED | ||||
| Source life time | >50,000h at 25°C ambient temperature | ||||
| CRI | >80 | ||||
| Step McAdam | 3 | ||||
| Source flux | 22500 lm | ||||
| Source efficiency | 150 lm/W | ||||
| Delivered flux | 21000 lm | ||||
| Delivered efficiency | 140 lm/W | ||||
| Input power | 150W | ||||
| Supply voltage | 110~240V AC | ||||
| Insulation Class | insulation class I | ||||
| Power supply | Built in constant current driver | ||||
| Material | Aluminum | ||||
| Light colour/CCT | 6000-6500K | ||||
| Beam angle | 120° | ||||
| Mounting | Suspension installation | ||||
| Reflector color | - | ||||
| Finishing | Grey | ||||
TEMPERATURE LIMITS
Working temperature: -30C° to +50C°
Storage temperature: -50C° to +80C°
LIGHT CONTROL
ON/off,DALI dimming
CONSTRUCTION
Die-casting aluminum case,excellent heat dissipation performance, Durable outdoor painting process of the product,excellent quality.anti-corrosion and anti-rusting performance, widely used in different environment
WARRANTY
• 5-year limited system warranty standard
• Warranty does not cover product failure due to an overvoltage event (power surge)
• For installations where power surge may be possible, NICOR recommends installing additional
surge protection at the electrical distribution panel
SPECIFICATIONS
TECHNICAL DRAWING

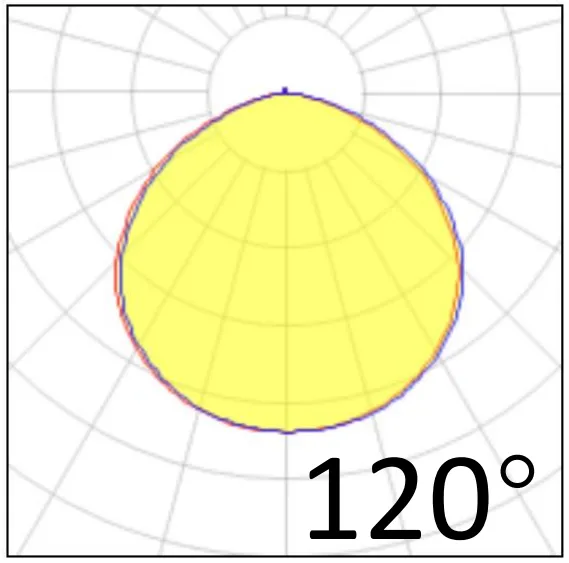

PHOTOMETRICS
The OPTILUX 150W explosion-proof LED flood light is engineered for use in hazardous environments such as chemical plants, refineries, and oil & gas facilities. It features a robust, spark-proof housing with IP65 weather protection. Fixed CCT options between 3000K and 6000K are available for project-specific applications.
Perfect for high-risk and industrial zones requiring explosion-proof certified lighting:
Oil & gas drilling platforms
Petrochemical and chemical processing plants
Mining tunnels and shafts
Grain silos and dust-prone facilities
Paint spray booths and factories
Power generation stations and substations
With rugged performance and wide adaptability, this explosion-proof light ensures safety, compliance, and efficiency in the harshest conditions.
Industry-compliant designs for hazardous zones
Advanced thermal management to ensure long lifespan
Customizable wattages and beam distributions
In-house R&D, OEM & ODM service supported
Prompt delivery and competitive pricing
A1: It complies with international explosion-proof safety standards (see datasheet for details).
A2: Yes, the die-cast aluminum body is corrosion-resistant.
A3: Customizable beam angles and bracket types are available.
Ensure safety without compromising performance. Contact Optilux today for explosion-proof LED flood light pricing, datasheets, or customized lighting proposals. We're committed to lighting up your hazardous zones—safely and reliably.
