20W~40W CCT 3000-6000K Surface Mounted Ceiling Light

CRI>80
Delivered flux2000 lm
Delivered efficiency100 lm/W
Input power20W
Supply voltage100~240V AC
Light colour/CCT3000K/4000K/6000K
Beam anglediffuse

RECOMMENDED BUNDLES

PARAMETER

IP rating65
Ik rating8
Source typeHight power LED
Source life time>50,000h at 25°C ambient temperature
CRI>80
Step McAdam3
Source flux2400 lm
Source efficiency120 lm/W
Delivered flux2000 lm
Delivered efficiency100 lm/W
Input power20W
Supply voltage110~240V AC
Insulation Classinsulation class III
Power supplyLifud driver constant current
Materialaluminium+PC
Light colour/CCT2700K/3000K/4000K/6000K
Beam anglediffuse
Mountingsurface mount
Reflector color-
Finishingwhite/black/grey



TEMPERATURE LIMITS

Working temperature: -30C° to +50C°

Storage temperature: -50C° to +80C°

LIGHT CONTROL

ON/off, optional DALI dimming

CONSTRUCTION

Die cast aluminum shell, matte painted surface, anti-corrosion and rust proof, tough PC material lampshade, not easily damaged, IP65 structure waterproof

WARRANTY

• 5-year limited system warranty standard

• Warranty does not cover product failure due to an overvoltage event (power surge)

• For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel

SPECIFICATIONS

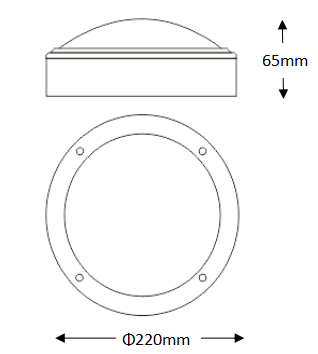

TECHNICAL DRAWING


PHOTOMETRICS

Description


The OPTILUX 20W surface-mounted ceiling light is a versatile indoor solution for spaces like corridors, kitchens, offices, and retail environments. It features a low-profile design for easy installation on concrete or flat ceilings. Fixed color temperature options (3000K to 6000K) are available based on order requirements.


20W Surface Mounted LED Ceiling Light Applications


Perfect for a wide range of indoor environments:

  • Offices and conference rooms

  • Corridors and hallways

  • Apartments and residential buildings

  • Hotels and commercial lobbies

  • Educational institutions and clinics

  • Retail stores and showrooms

Its wide beam angle and glare-free output ensure balanced, uniform lighting across large spaces.


Why Choose Optilux Ceiling Lights?


  • Professional LED lighting manufacturer with extensive R&D and customization experience

  • High-performance SMD LED chips with stable output

  • Seamless installation and modern design

  • Compliant with CE, RoHS, and other international standards

  • Fast delivery and full OEM/ODM support


FAQ


Q1: Is this ceiling light suitable for both residential and commercial use?

A1: Yes, it is ideal for homes, offices, and public spaces.


Q2: Does it require a recessed cutout?

A2: No, this is a surface-mounted fixture that installs directly on ceilings.


Q3: Can the light be dimmed?

A3: Yes, dimmable versions are available upon request.


Upgrade your indoor lighting with high-performance ceiling fixtures. Contact Optilux now to request a quote, sample, or personalized lighting solution. We help you bring energy-efficient brilliance to every space.
