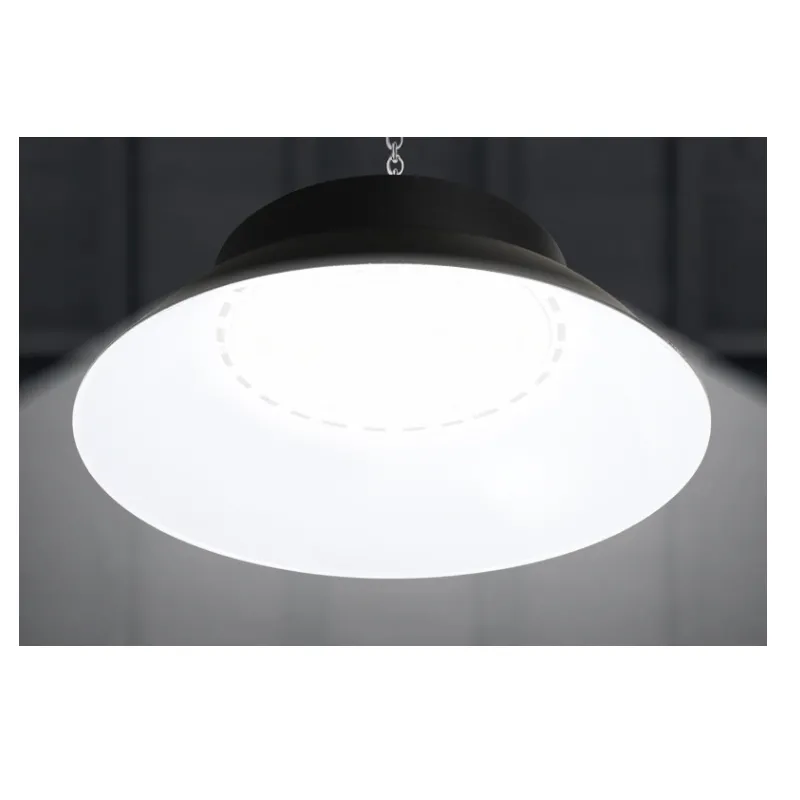

60W CCT4000K Lowbay Light
| CRI | >90 | ||||
| Delivered flux | 6000lm | ||||
| Delivered efficiency | 100 lm/W | ||||
| Input power | 60W | ||||
| Supply voltage | AC220V | ||||
| Light colour/CCT | 4000K | ||||
| Beam angle | 120° | ||||
5-YEAR WARRANTY
5-YEAR WARRANTY
| CRI | >90 | ||||
| Delivered flux | 6000lm | ||||
| Delivered efficiency | 100 lm/W | ||||
| Input power | 60W | ||||
| Supply voltage | AC220V | ||||
| Light colour/CCT | 4000K | ||||
| Beam angle | 120° | ||||
PARAMETER
| IP rating | 65 | ||||
| Ik rating | 8 | ||||
| Source type | Hight power LED | ||||
| Source life time | >50,000h at 25°C ambient temperature | ||||
| CRI | >90 | ||||
| Step McAdam | 3 | ||||
| Source flux | 7200 lm | ||||
| Source efficiency | 120 lm/W | ||||
| Delivered flux | 6000lm | ||||
| Delivered efficiency | 100 lm/W | ||||
| Input power | 60W | ||||
| Supply voltage | AC220V | ||||
| Insulation Class | insulation class III | ||||
| Power supply | constant current driver | ||||
| Material | Aluminium | ||||
| CCT | 4000K | ||||
| Beam angle | 120° | ||||
| Mounting | unground-recessed | ||||
| Reflector color | white | ||||
| Finishing | black | ||||
TEMPERATURE LIMITS
Working temperature: -30C° to +50C°
Storage temperature: -50C° to +80C°
LIGHT CONTROL
DALI
CONSTRUCTION
*Thick cast aluminum material, fast heat dissipation
*Thick tempered lens mask, explosion-proof, pressure resistant, and high-temperature resistant
*Integrated sealing ring design
WARRANTY
*Thick cast aluminum material, fast heat dissipation
*Thick tempered lens mask, explosion-proof, pressure resistant, and high-temperature resistant
*Integrated sealing ring design
SPECIFICATIONS
TECHNICAL DRAWING
PHOTOMETRICS
