100W CCT 3000-6000K IP65 Hight Bay Lights
| CRI | >80 | ||||
| Delivered flux | 14000 lm | ||||
| Delivered efficiency | 140 lm/W | ||||
| Input power | 100W | ||||
| Supply voltage | 110~240V AC | ||||
| Light colour/CCT | 3000K/4000K/6000K | ||||
| Beam angle | 90° | ||||
5-YEAR WARRANTY
5-YEAR WARRANTY
| CRI | >80 | ||||
| Delivered flux | 14000 lm | ||||
| Delivered efficiency | 140 lm/W | ||||
| Input power | 100W | ||||
| Supply voltage | 110~240V AC | ||||
| Light colour/CCT | 3000K/4000K/6000K | ||||
| Beam angle | 90° | ||||
PARAMETER
| IP rating | 65 | ||||
| Ik rating | 8 | ||||
| Source type | Hight power LED | ||||
| Source life time | >50,000h at 25°C ambient temperature | ||||
| CRI | >80 | ||||
| Step McAdam | 3 | ||||
| Source flux | 15000 lm | ||||
| Source efficiency | 150 lm/W | ||||
| Delivered flux | 14000 lm | ||||
| Delivered efficiency | 140 lm/W | ||||
| Input power | 100W | ||||
| Supply voltage | 110~240V AC | ||||
| Insulation Class | insulation class I | ||||
| Power supply | Philips constant current driver | ||||
| Material | aluminum | ||||
| Light colour/CCT | 3000K/4000K/6000K | ||||
| Beam angle | 90° | ||||
| Mounting | Suspension installation | ||||
| Reflector color | - | ||||
| Finishing | Black | ||||
Warehouses & Distribution Centers
Manufacturing & Industrial Facilities
Supermarkets & Retail Spaces
Gymnasiums & Sports Halls
Workshops & Cold Storage Facilities
TEMPERATURE LIMITS
Working temperature: -30C° to +50C°
Storage temperature: -50C° to +80C°
LIGHT CONTROL
ON/off,DALI dimming
CONSTRUCTION
Die-casting aluminum case,excellent heat dissipation performance, Durable outdoor painting process of the product,excellent quality.anti-corrosion and anti-rusting performance, widely used in different environment
WARRANTY
• 5-year limited system warranty standard
• Warranty does not cover product failure due to an overvoltage event (power surge)
• For installations where power surge may be possible, NICOR recommends installing additional
surge protection at the electrical distribution panel
SPECIFICATIONS

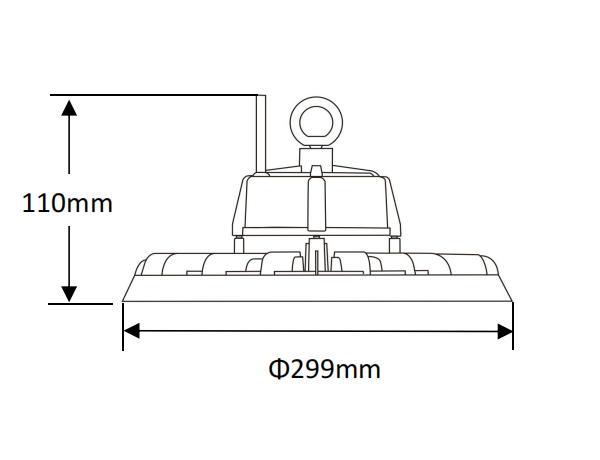

TECHNICAL DRAWING
PHOTOMETRICS
The 100W OPTILUX High Bay Light provides powerful illumination for warehouses, factories, and commercial facilities. With a durable IP65-rated aluminum body, it ensures reliability in harsh conditions. The light is available in fixed CCT options between 3000K and 6000K, customizable at production.
ISO9001 Certified – Manufactured under strict quality management standards to ensure consistent performance.
CE Approved – Complies with European safety, health, and environmental requirements.
RoHS Compliant – Free from hazardous substances, safe for the environment and humans.
CCC Certified – Meets China Compulsory Certification standards for product safety and reliability.
Q1: Can this 100W Hight Bay Lights be installed on high ceilings?
A1: Yes, it's designed for heights of 4–8 meters.
Q2: Is the color temperature adjustable?
A2: No, but fixed CCT can be selected during order.
Q3: What’s the typical lumen output?
A3: Around 130lm/W, approximately 13,000 lumens.
Q4: Can multiple lights be linked for large facilities?
A4: Yes, 100W Hight Bay Lights can be arranged in series or rows to provide uniform illumination.
Q5: Is the fixture suitable for outdoor environments?
A5: Yes, IP65 rating and anti-corrosion aluminum make it suitable for covered outdoor areas.
